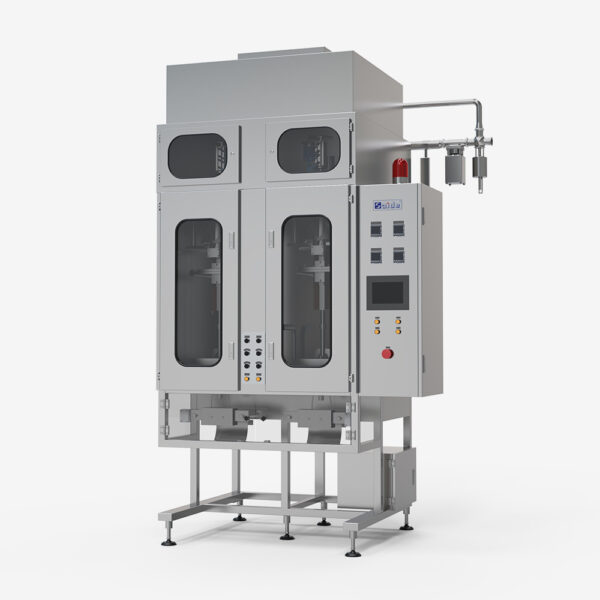

SJYB-IIISD Class 100 Back Seal Liquid Packaging Machine 134 Bags/Min

Class 100 Back Seal Liquid Packaging Machine SJYB-IIISD is a high-speed double-head fully automatic liquid pouch packing machine designed for hygienic liquid and semi-fluid packaging. It is suitable for pasteurized milk, yogurt drinks, soy milk, fruit juice, drinking water, plant-based beverages, protein drinks, sauces, soy sauce, active biological liquids, and similar products.

With a maximum speed of 134 bags/min, the SJYB-IIISD completes film feeding, UV sterilization, pouch forming, liquid metering, filling, back sealing, cutting, date coding, and finished pouch output in one automatic process. Its Class 100 clean purification system, PLC/HMI control, CIP-ready structure, and PE film compatibility make it suitable for clean, stable, and high-speed liquid pouch production.

Class 100 Back Seal Liquid Packaging Machine Overview

The SJYB-IIISD Class 100 Back Seal Liquid Packaging Machine is designed for packaging environments that require higher cleanliness and stable sealing quality. The back-seal pouch format is widely used for dairy, beverage, and liquid food products because it provides a reliable pouch structure and efficient forming process.

The machine uses a double-head filling structure to improve packaging efficiency while maintaining accurate metering and consistent pouch sealing. Its Class 100 clean laminar flow system helps protect the filling and packaging area during production.

Technical Parameters

Technical Parameter	Specification
Model	SJYB-IIISD
Production Capacity	90-134 bags/min; 50-90 bags/min adjustable mode
Packaging Volume	500-1000ml; 1000-500ml
Film Width	240-350mm
Metering Accuracy	+/-0.5-1%
Working Pressure	0.65 MPa
Air Consumption	1.0 m³/min at 0.8 MPa
Power Supply	AC 220V +/-10%, 50Hz
Maximum Power	3.5 kW
Overall Dimensions	1700 x 1600 x 3300 mm
Equipment Weight	700 kg

4 Core Advantages of the Class 100 Back Seal Liquid Packaging Machine

1. Class 100 Cleanroom Packaging Protection

The machine can be equipped with a Class 100 clean laminar flow purification system above the forming and filling area. This helps create a cleaner packaging environment for dairy, beverage, and hygiene-sensitive liquid products.

2. High-Speed Double-Head Packaging

The double-head design improves production output by filling and sealing two pouches in each cycle. With production capacity up to 134 bags/min, the machine supports high-throughput liquid pouch packaging lines.

3. PLC Control and HMI Touchscreen Operation

The SJYB-IIISD uses PLC control and an HMI touchscreen for filling volume adjustment, speed setting, production monitoring, fault alarms, and recipe management. This makes operation easier and improves flexibility for different products.

4. UV Sterilization and CIP-Ready Cleaning

Strong UV sterilization treats the PE film before filling, while the CIP-ready liquid circuit supports automatic circulation cleaning. These features help improve hygiene and reduce manual cleaning work between production batches.

Applications

This Class 100 Back Seal Liquid Packaging Machine is suitable for hygienic packaging of liquid and semi-fluid products.

• Pasteurized milk, yogurt drinks, and dairy beverages
• Fruit juice, soy milk, drinking water, and plant-based beverages
• Protein drinks, cold noodle soup, and beverage bases
• Soy sauce, sauce products, and liquid condiments
• Active biological liquids and other hygiene-sensitive liquid products

For related pouch filling and packing solutions, you can view our 100-1000ml liquid packing equipment category.

Workflow

First, PE roll film enters the servo film feeding system and passes through UV sterilization. The machine forms the pouch, meters the product, fills through the double-head filling system, completes back sealing, cuts the pouch, prints the date code, and discharges the finished bag automatically.

The Class 100 clean purification system works during packaging to support a cleaner production environment. Operators can adjust packaging speed, filling volume, sealing settings, and production parameters through the HMI touchscreen.

FAQ

What is the maximum speed of the SJYB-IIISD Class 100 Back Seal Liquid Packaging Machine?

The machine can reach up to 134 bags/min, depending on product viscosity, packaging volume, film condition, and production settings.

What packaging volume does this machine support?

The SJYB-IIISD supports 500-1000ml and 1000-500ml packaging ranges, suitable for common liquid pouch formats.

What products can be packed by this machine?

It can pack pasteurized milk, yogurt drinks, fruit juice, soy milk, drinking water, protein drinks, sauces, soy sauce, cold noodle soup, and other liquid or semi-fluid products.

What is the benefit of Class 100 cleanroom protection?

Class 100 cleanroom protection helps reduce contamination risk around the forming and filling area, making it useful for dairy, beverage, and hygiene-sensitive liquid packaging.

Does the machine support automatic cleaning?

Yes. The SJYB-IIISD supports CIP automatic circulation cleaning, helping reduce manual cleaning work and improve sanitation between production batches.
