SJYB-Ⅷ 10-25L Ultra-large Capacity Fully Automatic Liquid Packaging Machine
Product Summary
The SYB-VIII/SJYB-VIII is a super capacity liquid packaging machine designed for 10-25L bulk pouch packaging of liquid and semi-fluid products. It is suitable for edible oil, animal oil, soybean oil, sauces, condiments, dairy products, beverages, detergents, lubricants, coatings, industrial raw materials, food ingredients, and other products requiring large-volume flexible packaging.
Built with a reinforced stainless steel structure, laminated film sealing, PLC control, HMI touchscreen operation, servo and pneumatic hybrid transmission, UV film sterilization, and CIP automatic circulation cleaning compatibility, the SYB-VIII/SJYB-VIII supports production speeds of 2.5-6 bags/min with metering accuracy of +/-0.5%. With film width support from 810-970mm, optional Class 100 clean laminar flow protection, a maximum power of 3 kW / 2.5 kW, and a reinforced footprint of 2200 x 1500 x 3000 mm or 3400 mm height configuration, it provides a cost-saving alternative to traditional barrel packaging for food, industrial, and agricultural bulk liquid applications.

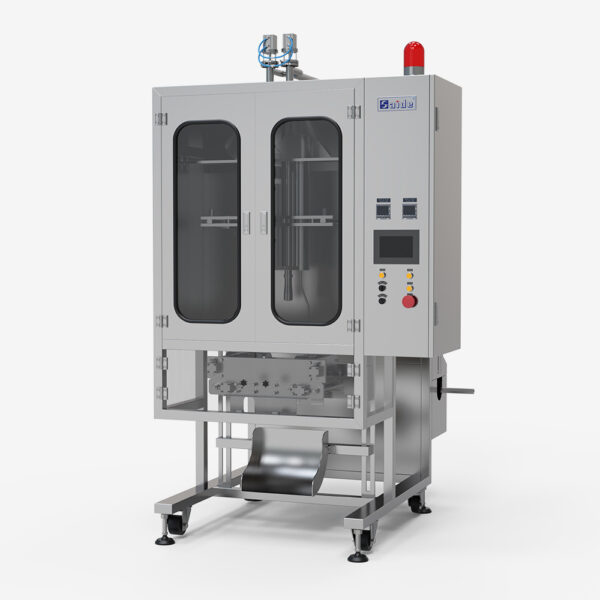

SYB-VIII/SJYB-VIII Super Capacity Liquid Packaging Machine 6 Bags/Min
Table of Contents
Super Capacity Liquid Packaging Machine SYB-VIII/SJYB-VIII is a fully automatic bulk pouch packing system designed for 10-25L liquid and semi-fluid products. It is suitable for edible oil, animal oil, soybean oil, sauces, condiments, dairy products, beverages, detergents, lubricants, coatings, food raw materials, industrial raw materials, and similar bulk liquid products.
With a production speed of 2.5-6 bags/min, the SYB-VIII/SJYB-VIII completes film feeding, UV sterilization, pouch forming, liquid metering, filling, sealing, cutting, date coding, and finished pouch discharge in one automatic process. Its PLC/HMI control, servo and pneumatic hybrid drive, CIP-ready structure, laminated film sealing support, and optional Class 100 clean purification system make it suitable for super capacity liquid pouch packaging.
Super Capacity Liquid Packaging Machine Overview
The SYB-VIII/SJYB-VIII Super Capacity Liquid Packaging Machine is designed for manufacturers that need large-volume flexible packaging for 10L to 25L liquid products. Compared with traditional barrel packaging, flexible pouch packaging can help reduce packaging material cost, logistics weight, and storage space.
The machine supports heavy laminated film packaging and reinforced sealing to improve package strength for bulk liquid products. The optional Class 100 clean laminar flow system can be added to create a cleaner packaging environment for hygiene-sensitive applications.
Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Model | SYB-VIII/SJYB-VIII |
| Production Capacity | 2.5-6 bags/min |
| Packaging Volume | 10-25L |
| Film Width | 810-970mm |
| Metering Accuracy | +/-0.5% |
| Working Pressure | 0.65 MPa |
| Air Consumption | 0.6 m³/min at 0.8 MPa |
| Power Supply | AC 220V +/-10%, 50Hz |
| Maximum Power | 3 kW / 2.5 kW |
| Overall Dimensions | 2200 x 1500 x 3000 mm / 3400 mm |
| Equipment Weight | 700 kg / 750 kg |
4 Core Advantages of the Super Capacity Liquid Packaging Machine
1. 10-25L Super Capacity Packaging
The SYB-VIII/SJYB-VIII supports 10-25L bulk pouch packaging for large-volume liquid products. It is suitable for food raw materials, industrial liquids, agricultural liquids, and other bulk packaging applications.
2. Lower Packaging and Logistics Cost
Flexible pouch packaging can help reduce packaging material usage, storage space, and transportation weight compared with traditional barrel packaging, making it practical for large-volume liquid distribution.
3. Reinforced Laminated Film Sealing
The machine supports heavy laminated film packaging and reinforced sealing to improve pouch strength. This helps protect bulk liquid products during filling, handling, storage, and transportation.
4. CIP-Ready Design with Optional Class 100 Protection
The liquid-contact pipeline supports CIP automatic circulation cleaning to reduce manual cleaning work. Optional Class 100 clean laminar flow protection can be added for products requiring higher hygiene during packaging.
Applications
This Super Capacity Liquid Packaging Machine is suitable for 10-25L pouch packaging of food, beverage, industrial, agricultural, and chemical liquid products.
- Edible oil, animal oil, soybean oil, cottonseed oil, and seasoning oil
- Soybean paste, sweet sauce, chili sauce, ketchup, and condiments
- Dairy products, beverages, drinking water, and plant-based drinks
- Soy sauce, vinegar, cooking wine, and liquid seasonings
- Liquid detergent, cleaning liquid, softener, and daily chemical products
- Lubricants, coatings, paint, and industrial liquids
- Food raw materials, agricultural liquids, and industrial raw materials
For smaller pouch filling and packing solutions, you can view our 100-1000ml liquid packing equipment category.
Workflow
First, heavy laminated roll film enters the film feeding system and passes through UV sterilization. The machine forms the bulk pouch, meters the liquid product, fills the pouch, completes reinforced sealing, cuts the finished pouch, prints the date code, and discharges the final bag automatically.
Operators can adjust filling volume, pouch size, sealing parameters, production speed, and alarm settings through the HMI touchscreen. The system can also connect with upstream product supply systems and CIP cleaning equipment according to factory layout.
FAQ
What packaging volume does this Super Capacity Liquid Packaging Machine support?
The machine supports 10-25L bulk liquid pouch packaging, suitable for large-volume flexible packaging applications.
What is the maximum production speed?
The machine can reach up to 6 bags/min, depending on product viscosity, pouch volume, film material, and production settings.
What products can this machine pack?
It can pack edible oil, animal oil, soybean oil, sauces, condiments, dairy products, beverages, detergents, lubricants, coatings, food raw materials, industrial raw materials, and other liquid or semi-fluid products.
Why choose pouch packaging instead of barrel packaging?
Flexible pouch packaging can reduce packaging material cost, logistics weight, and storage space compared with traditional barrel packaging, especially for bulk liquid distribution.
Does the machine support automatic cleaning?
Yes. The machine supports CIP automatic circulation cleaning, helping reduce manual cleaning work and improve sanitation between production batches.
To discuss 10-25L pouch volume, film width, filling viscosity, cleanroom configuration, or bulk packaging line layout, please contact Saide Pack. You can also read more packaging machine guides in our packaging machinery blog.
