SJYB-Ⅵ 1-5L Fully Automatic Liquid Packaging Machine
Product Summary
The SYB-VI/SJYB-VI is a customizable automatic liquid packaging machine designed for 5L to 1L pouch formats, with options for bag shape, material, capacity, sealing style, and production configuration. It is suitable for liquid and semi-fluid products such as edible oil, soybean paste, sweet sauce, chili oil, dairy beverages, fruit juice, drinking water, detergents, coatings, lubricants, and other food or industrial liquid products.
Built with a modular stainless steel structure, servo motor and pneumatic hybrid transmission, PLC control, and HMI touchscreen operation, the SYB-VI/SJYB-VI supports production speeds of 5-20 bags/min with metering accuracy of +/-0.5%. With optional Class 100 clean laminar flow protection, UV film sterilization, CIP automatic circulation cleaning compatibility, laminated film sealing support, and a film width range of 350-620mm, it provides a flexible solution for customized medium and large-volume liquid pouch packaging lines.

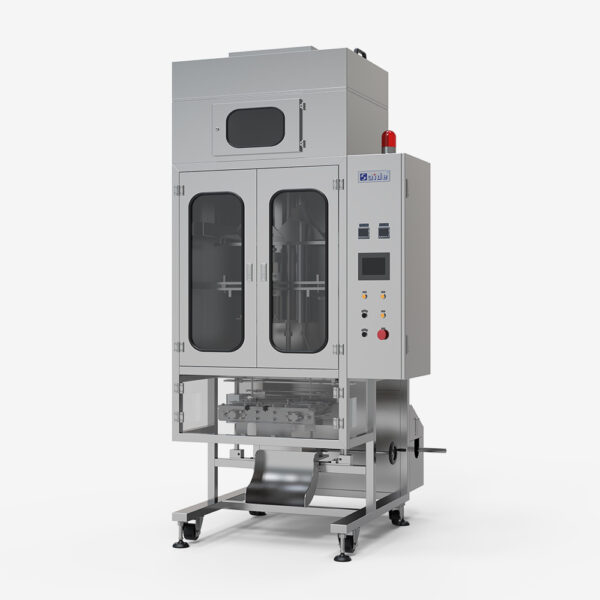

SYB-VI/SJYB-VI 5L Liquid Packaging Machine 20 Bags/Min
Table of Contents
5L Liquid Packaging Machine SYB-VI/SJYB-VI is a customizable automatic pouch packing system designed for medium and large-volume liquid products. It supports packaging formats from 5L to 1L and can be customized by bag shape, material, capacity, sealing style, and production configuration.
With a production speed of 5-20 bags/min, the SYB-VI/SJYB-VI completes film feeding, UV sterilization, pouch forming, liquid metering, filling, sealing, cutting, date coding, and finished pouch discharge in one automatic process. Its PLC/HMI control, servo and pneumatic hybrid drive, CIP-ready structure, laminated film sealing support, and optional Class 100 clean purification system make it suitable for flexible liquid pouch packaging production.
5L Liquid Packaging Machine Overview
The SYB-VI/SJYB-VI 5L Liquid Packaging Machine is designed for manufacturers that need customizable pouch packaging for liquid and semi-fluid products. It can support different pouch sizes, sealing formats, and film materials according to product requirements and factory layout.
The machine is suitable for edible oil, sauces, dairy beverages, juice, drinking water, detergents, lubricants, coatings, and similar products. The SJYB version can be configured with Class 100 clean laminar flow protection for higher hygiene requirements, while the SYB version is suitable for general automatic liquid packaging applications.
Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Model | SYB-VI/SJYB-VI |
| Production Capacity | 5-20 bags/min |
| Packaging Volume | 5-1L |
| Film Width | 350-620mm |
| Metering Accuracy | +/-0.5% |
| Working Pressure | 0.65 MPa |
| Air Consumption | 0.6 m³/min at 0.8 MPa |
| Power Supply | AC 220V +/-10%, 50Hz |
| Maximum Power | 3 kW / 2.5 kW |
| Overall Dimensions | 1560 x 1550 x 2700 mm / 3100 mm |
| Equipment Weight | 670 kg / 710 kg |
4 Core Advantages of the 5L Liquid Packaging Machine
1. Customizable Pouch Formats
The SYB-VI/SJYB-VI can be customized by bag shape, packaging material, filling capacity, and sealing style. This makes it suitable for factories that need flexible packaging solutions for different liquid products and market formats.
2. PLC Control and HMI Touchscreen Operation
The machine uses PLC control and an HMI touchscreen for filling volume adjustment, packaging speed setting, production monitoring, alarm display, and recipe management. Operators can adjust production parameters quickly for different products.
3. Laminated Film Sealing and UV Sterilization
The machine supports laminated film packaging and uses reinforced sealing to improve pouch strength. Strong UV sterilization treats the packaging film before filling, helping improve hygiene during pouch forming and filling.
4. CIP-Ready Design with Optional Class 100 Protection
The liquid-contact pipeline supports CIP automatic circulation cleaning to reduce manual cleaning work. For products requiring higher cleanliness, the SJYB-VI configuration can include a Class 100 clean laminar flow purification system.
Applications
This 5L Liquid Packaging Machine is suitable for customized pouch packaging of liquid and semi-fluid products across food, beverage, condiment, oil, chemical, and industrial liquid production.
- Edible oil, soybean oil, peanut oil, and vegetable oil
- Soybean paste, sweet sauce, chili sauce, ketchup, and condiments
- Dairy beverages, milk drinks, fruit juice, and drinking water
- Liquid detergent, cleaning liquid, and daily chemical products
- Lubricants, coatings, wood varnish, and industrial liquids
- Additives, soy sauce, vinegar, and similar liquid products
For smaller pouch filling and packing solutions, you can view our 100-1000ml liquid packing equipment category.
Workflow
First, roll film enters the film feeding system and passes through UV sterilization. The machine forms the pouch, meters the liquid product, fills the pouch, completes sealing, cuts the finished pouch, prints the date code, and discharges the final bag automatically.
Operators can adjust filling volume, packaging speed, sealing settings, production counting, and alarm parameters through the HMI touchscreen. The system can also connect with CIP cleaning equipment and upstream product supply systems according to factory layout.
FAQ
What packaging volume does the SYB-VI/SJYB-VI 5L Liquid Packaging Machine support?
The machine supports 5L to 1L pouch packaging and can be customized according to the required bag capacity and product format.
What is the maximum production speed?
The machine can reach up to 20 bags/min, depending on product viscosity, pouch volume, film material, and production settings.
Can the pouch format be customized?
Yes. Bag shape, material, capacity, and sealing style can be customized according to product requirements and factory production needs.
What products can this machine pack?
It can pack edible oil, sauces, soybean paste, dairy beverages, juice, drinking water, detergents, lubricants, coatings, condiments, and other liquid or semi-fluid products.
What is the difference between SYB-VI and SJYB-VI?
The SYB-VI is suitable for general automatic liquid pouch packaging. The SJYB-VI can be configured with Class 100 clean laminar flow protection for higher hygiene requirements.
To discuss pouch shape, material, capacity, sealing style, filling viscosity, or production line layout, please contact Saide Pack. You can also read more packaging machine guides in our packaging machinery blog.
