SJYB-ⅢSD-F 100-1200ml Laminated Film High-speed Back Seal (Center Seal) Dual-head Fully Automatic Liquid Packaging Machine
Product Summary
The SYB/SJYB-IIISD-F is a customizable dual-head fully automatic laminated film liquid packaging machine designed for high-barrier pouch production from 0.1L to 25L. It is engineered for liquid and semi-fluid products that require stronger oxygen resistance, better package strength, improved sealing reliability, and higher hygienic packaging conditions.
Built with a laminated film sealing structure, adjustable horizontal sealing height, servo motor and pneumatic hybrid transmission, PLC control, and HMI touchscreen operation, the SYB/SJYB-IIISD-F supports production speeds of 60-90 bags/min and 36-60 bags/min depending on pouch volume and product viscosity. With optional Class 100 clean laminar flow protection, UV film sterilization, CIP automatic circulation cleaning compatibility, and a reinforced stainless steel structure, it provides a flexible high-barrier solution for food, condiment, dairy, beverage, oil, chemical, and industrial liquid packaging lines.

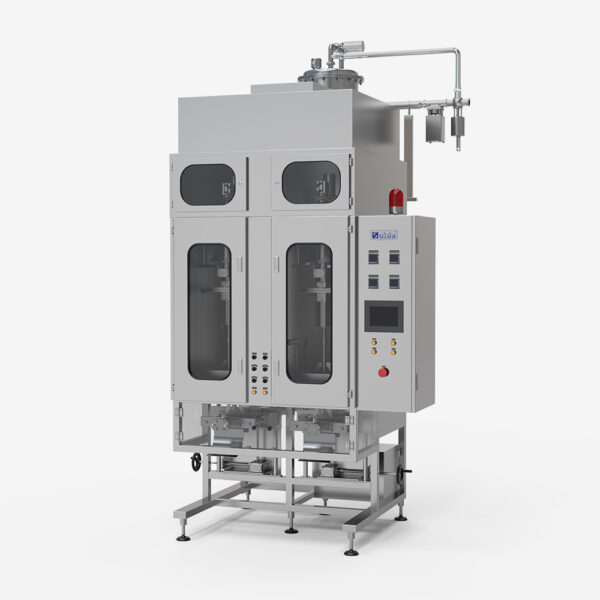

SYB/SJYB-IIISD-F Laminated Film Liquid Packaging Machine 0.1-25L
Table of Contents
Laminated Film Liquid Packaging Machine SYB/SJYB-IIISD-F is a fully automatic pouch packing machine designed for liquid and semi-fluid products requiring high-barrier laminated film packaging. It is suitable for customized pouch volumes from 0.1L to 25L, supporting products that need stronger package isolation, better sealing strength, and cleaner production conditions.
With production speeds of 60-90 bags/min and 36-60 bags/min, the SYB/SJYB-IIISD-F completes laminated film feeding, UV sterilization, pouch forming, liquid metering, filling, back sealing, cutting, date coding, and finished pouch output in one automatic process. Its optional Class 100 clean purification system, PLC/HMI control, servo and pneumatic hybrid drive, CIP-ready structure, and laminated composite film compatibility make it suitable for demanding liquid pouch packaging lines.
Laminated Film Liquid Packaging Machine Overview
The SYB/SJYB-IIISD-F Laminated Film Liquid Packaging Machine is designed for products that require better barrier performance than standard PE film packaging. Laminated composite film helps improve oxygen resistance, puncture resistance, sealing strength, and shelf-life protection.
The machine supports flexible customization for different pouch sizes and liquid categories. Its adjustable horizontal sealing system allows fast changeover between different specifications, while the reinforced sealing design improves seal strength for laminated film pouches.
Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Model | SYB/SJYB-IIISD-F |
| Production Capacity | 60-90 bags/min; 36-60 bags/min adjustable mode |
| Packaging Volume | 500-100ml; 1200-500ml; customizable from 0.1L to 25L |
| Film Width | 240-350mm, customizable for larger pouch formats |
| Metering Accuracy | +/-0.5-1% |
| Working Pressure | 0.65 MPa |
| Air Consumption | 1.0 m³/min at 0.8 MPa |
| Power Supply | AC 220V +/-10%, 50Hz |
| Maximum Power | 4 kW |
| Overall Dimensions | 1700 x 1650 x 3300 mm |
| Equipment Weight | 700 kg |
4 Core Advantages of the Laminated Film Liquid Packaging Machine
1. High-Barrier Laminated Film Packaging
The machine is designed for laminated composite film, helping improve oxygen resistance, sealing strength, and product protection. It is suitable for products that require stronger packaging than standard PE film can provide.
2. Customizable 0.1-25L Packaging Range
The SYB/SJYB-IIISD-F can be customized for different pouch volumes from 0.1L to 25L. This makes it suitable for small retail pouches, medium liquid pouches, and larger customized liquid packaging formats.
3. Adjustable Sealing and Stable Transmission
The horizontal sealing unit supports stepless height adjustment for fast specification changes. Servo motor and pneumatic hybrid transmission help maintain stable film feeding, filling, sealing, cutting, and date coding during continuous production.
4. UV Sterilization, CIP Cleaning, and Optional Class 100 Protection
Strong UV sterilization treats the laminated film before filling, while the CIP-ready liquid circuit supports automatic circulation cleaning. Optional Class 100 clean laminar flow protection can be added for products requiring higher hygienic packaging conditions.
Applications
This Laminated Film Liquid Packaging Machine is suitable for high-barrier pouch packaging of liquid and semi-fluid products across food, dairy, beverage, condiment, oil, chemical, and industrial liquid production.
- Milk, yogurt, fermented milk, and dairy beverages
- Fruit juice, plant-based beverages, drinking water, and beverage bases
- Soy sauce, vinegar, cooking sauce, ketchup, and condiment liquids
- Edible oil, chili oil, sesame oil, and other plant-based oils
- Liquid egg, egg white liquid, egg yolk liquid, and liquid food ingredients
- Liquid detergent, cleaning liquid, laundry liquid, and daily chemical products
- Lubricants, coatings, wood varnish, paint, and industrial liquids
For related pouch filling and packing solutions, you can view our 100-1000ml liquid packing equipment category.
Workflow
First, laminated composite roll film enters the servo film feeding system and passes through UV sterilization. The machine forms the pouch, meters the product, fills through the dual-head filling system, completes back sealing, cuts the pouch, prints the date code, and discharges the finished bag automatically.
Operators can adjust filling volume, pouch length, sealing height, sealing temperature, production speed, and alarm settings through the HMI touchscreen. For larger customized pouch formats, the machine structure, film width, filling system, and sealing design can be configured according to product requirements.
FAQ
What is the packaging range of the SYB/SJYB-IIISD-F Laminated Film Liquid Packaging Machine?
The machine can be customized for packaging volumes from 0.1L to 25L, depending on product type, pouch size, film width, and production requirements.
What is the maximum production speed?
The machine supports 60-90 bags/min and 36-60 bags/min modes, depending on filling volume, product viscosity, and pouch format.
Why use laminated film for liquid packaging?
Laminated film provides better oxygen barrier performance, stronger sealing strength, and improved package durability compared with standard PE film. It is useful for food, oil, dairy, chemical, and industrial liquid products requiring stronger protection.
Can this machine pack both food and non-food liquids?
Yes. It can be configured for food products such as milk, sauces, edible oil, and liquid egg, as well as non-food liquids such as detergents, lubricants, coatings, and cleaning liquids.
Does the machine support hygienic production?
Yes. The machine supports UV film sterilization, CIP automatic circulation cleaning, and optional Class 100 clean laminar flow protection for higher hygiene requirements.
To discuss laminated film requirements, pouch size, filling volume, product viscosity, Class 100 clean configuration, or production line layout, please contact Saide Pack. You can also read more packaging machine guides in our packaging machinery blog.
