SJYB-Ⅶ 3-12L Large Capacity Fully Automatic Liquid Packaging Machine
Product Summary
The SJYB-VII is a Class 100 large capacity liquid packaging machine designed for automatic pouch packaging from 1L to 25L, with customization available according to product and factory requirements. It is suitable for bone broth, edible oil, animal oil, hot pot oil, dairy products, sauces, condiments, beverages, detergents, lubricants, coatings, liquid egg, plant protein drinks, and other liquid or semi-fluid products requiring clean, large-capacity packaging.
Built with a Class 100 clean laminar flow purification system, reinforced laminated film sealing, modular stainless steel structure, PLC control, HMI touchscreen operation, servo and pneumatic hybrid transmission, UV film sterilization, and CIP automatic circulation cleaning compatibility, the SJYB-VII supports production speeds of 3-20 bags/min with metering accuracy of +/-0.5%. With film width support from 350-970mm, a maximum power of 3 kW, and a footprint of 1560 x 1750 x 2700 mm, it provides a hygienic and flexible solution for large-capacity liquid pouch packaging lines.

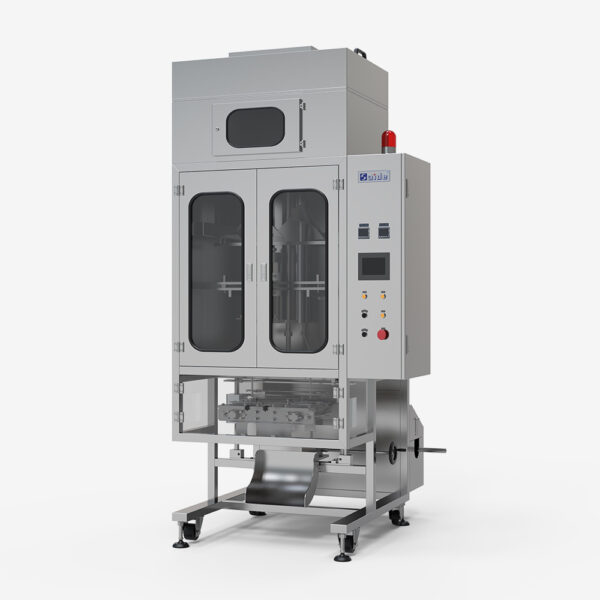

SJYB-VII Class 100 Large Capacity Liquid Packaging Machine 20 Bags/Min
Table of Contents
Class 100 Large Capacity Liquid Packaging Machine SJYB-VII is an automatic pouch packing system designed for clean large-volume packaging from 1L to 25L. It is suitable for bone broth, edible oil, animal oil, hot pot oil, dairy products, sauces, soy sauce, vinegar, wine, beverages, detergents, lubricants, coatings, liquid egg, plant protein drinks, and other liquid or semi-fluid products.
With a production speed of 3-20 bags/min, the SJYB-VII completes film feeding, UV sterilization, pouch forming, liquid metering, filling, sealing, cutting, date coding, and finished pouch discharge in one automatic process. Its Class 100 clean purification system, PLC/HMI control, servo and pneumatic hybrid drive, CIP-ready structure, and laminated film sealing support make it suitable for hygienic large-capacity liquid pouch packaging.
Class 100 Large Capacity Liquid Packaging Machine Overview
The SJYB-VII Class 100 Large Capacity Liquid Packaging Machine is designed for manufacturers that need cleaner packaging conditions, larger pouch volumes, accurate metering, and stable pouch sealing. It supports customizable packaging from 1L to 25L, depending on product requirements and pouch format.
The machine uses Class 100 clean laminar flow purification to support a cleaner forming and filling environment. Its adjustable sealing system allows quick specification changes for different pouch sizes, while laminated film compatibility helps improve pouch strength and product protection.
Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Model | SJYB-VII |
| Production Capacity | 3-20 bags/min |
| Packaging Volume | 1-25L, customizable |
| Film Width | 350-970mm |
| Metering Accuracy | +/-0.5% |
| Working Pressure | 0.65 MPa |
| Air Consumption | 0.6 m³/min at 0.8 MPa |
| Power Supply | AC 220V +/-10%, 50Hz |
| Maximum Power | 3 kW |
| Overall Dimensions | 1560 x 1750 x 2700 mm |
| Equipment Weight | 700 kg |
4 Core Advantages of the Class 100 Large Capacity Liquid Packaging Machine
1. Class 100 Clean Packaging Environment
The SJYB-VII is equipped with Class 100 clean laminar flow purification to support cleaner pouch forming and filling. This is useful for bone broth, dairy, beverages, liquid egg, and other hygiene-sensitive liquid products.
2. 1-25L Customizable Large-Capacity Packaging
The machine supports customized pouch volumes from 1L to 25L, making it suitable for small bulk, medium bulk, and large-volume flexible pouch packaging.
3. Laminated Film Sealing and UV Sterilization
The machine supports laminated film packaging and reinforced sealing to improve pouch strength. Strong UV sterilization treats the packaging film before filling, helping improve hygiene during pouch forming and filling.
4. PLC Control and CIP-Ready Cleaning
The PLC and HMI touchscreen system allows easy adjustment of filling volume, production speed, sealing parameters, and alarms. The CIP-ready liquid circuit supports automatic circulation cleaning to reduce manual cleaning work.
Applications
This Class 100 Large Capacity Liquid Packaging Machine is suitable for 1-25L pouch packaging of liquid and semi-fluid products across food, beverage, dairy, condiment, oil, daily chemical, and industrial liquid production.
- Bone broth, soup base, hot pot oil, and cooking oil
- Edible oil, animal oil, soybean oil, and vegetable oil
- Dairy products, milk drinks, beverages, juice, and drinking water
- Soy sauce, vinegar, cooking wine, sauces, and condiments
- Liquid egg, plant protein drinks, and active biological liquids
- Detergents, lubricants, coatings, wood varnish, and industrial liquids
For smaller pouch filling and packing solutions, you can view our 100-1000ml liquid packing equipment category.
Workflow
First, roll film enters the film feeding system and passes through UV sterilization. The Class 100 clean purification system supports cleaner pouch forming and filling. The machine meters the liquid product, fills the pouch, completes reinforced sealing, cuts the finished pouch, prints the date code, and discharges the final bag automatically.
Operators can adjust filling volume, pouch length, sealing parameters, production speed, and alarm settings through the HMI touchscreen. The system can also connect with upstream product supply systems and CIP cleaning equipment according to factory layout.
FAQ
What packaging volume does the SJYB-VII Class 100 Large Capacity Liquid Packaging Machine support?
The machine supports customizable pouch packaging from 1L to 25L, depending on product type, film width, and pouch size.
What is the maximum production speed?
The machine can reach up to 20 bags/min, depending on product viscosity, pouch volume, film material, and production settings.
What products can this machine pack?
It can pack bone broth, edible oil, dairy products, sauces, condiments, beverages, liquid egg, plant protein drinks, detergents, lubricants, coatings, and other liquid or semi-fluid products.
What is the benefit of Class 100 clean protection?
Class 100 clean laminar flow protection helps create a cleaner packaging environment, which is useful for hygiene-sensitive food and beverage products.
Does the machine support automatic cleaning?
Yes. The machine supports CIP automatic circulation cleaning, helping reduce manual cleaning work and improve sanitation between production batches.
