SJYB-Ⅶ 3-12L Large Capacity Soup Packaging Machine
Product Summary
The SYB-VII is a large capacity soup packaging machine designed for customizable pouch packaging from 1L to 25L. It is suitable for bone broth, beef broth, soup base, pork oil, hot pot oil, edible oil, soybean paste, sweet sauce, condiments, dairy products, beverages, detergents, lubricants, coatings, and other liquid or semi-fluid products requiring larger pouch capacity and stable sealing.
Built with a modular stainless steel structure, reinforced laminated film sealing, PLC control, HMI touchscreen operation, servo and pneumatic hybrid transmission, UV film sterilization, and CIP automatic circulation cleaning compatibility, the SYB-VII supports production speeds of 3-20 bags/min with metering accuracy of +/-0.5%. With film width support from 350-970mm, optional Class 100 clean laminar flow protection, a maximum power of 3 kW, and a footprint of 1560 x 1750 x 2700 mm, it provides a flexible solution for large-capacity soup, broth, sauce, oil, and liquid pouch packaging lines.

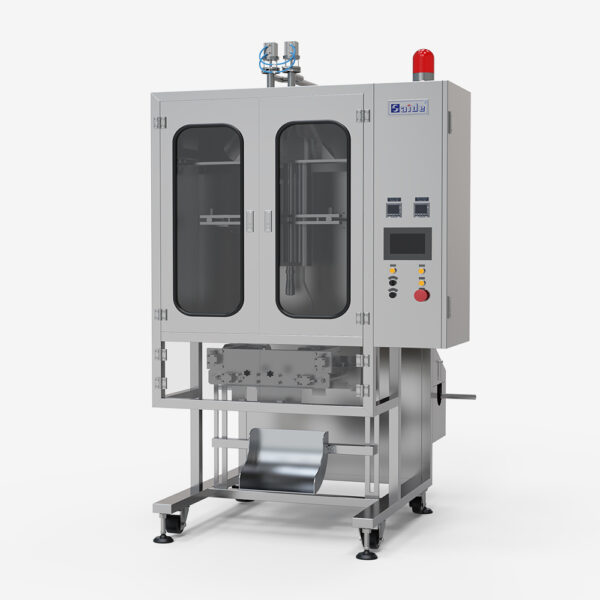

SYB-VII Large Capacity Soup Packaging Machine 20 Bags/Min
Table of Contents
Large Capacity Soup Packaging Machine SYB-VII is an automatic pouch packing system designed for soup, broth, oil, sauce, and liquid food products from 1L to 25L. It is suitable for bone broth, beef broth, soup base, pork oil, hot pot oil, edible oil, soybean paste, sweet sauce, sauces, condiments, dairy products, beverages, detergents, lubricants, coatings, and similar liquid or semi-fluid products.
With a production speed of 3-20 bags/min, the SYB-VII completes film feeding, UV sterilization, pouch forming, liquid metering, filling, sealing, cutting, date coding, and finished pouch discharge in one automatic process. Its PLC/HMI control, servo and pneumatic hybrid drive, CIP-ready structure, laminated film sealing support, and optional Class 100 clean purification system make it suitable for large-capacity soup and liquid pouch packaging.
Large Capacity Soup Packaging Machine Overview
The SYB-VII Large Capacity Soup Packaging Machine is designed for manufacturers that need large-volume flexible packaging for soup base, broth, sauces, oils, and other liquid food products. It supports customizable pouch packaging from 1L to 25L, depending on product requirements and pouch format.
The machine supports laminated film packaging and reinforced sealing to improve pouch strength for heavier liquid products. Its adjustable sealing system allows quick specification changes for different pouch sizes, while optional Class 100 clean laminar flow protection can be added for higher hygiene requirements.
Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Model | SYB-VII |
| Production Capacity | 3-20 bags/min |
| Packaging Volume | 1-25L, customizable |
| Film Width | 350-970mm |
| Metering Accuracy | +/-0.5% |
| Working Pressure | 0.65 MPa |
| Air Consumption | 0.6 m³/min at 0.8 MPa |
| Power Supply | AC 220V +/-10%, 50Hz |
| Maximum Power | 3 kW |
| Overall Dimensions | 1560 x 1750 x 2700 mm |
| Equipment Weight | 700 kg |
4 Core Advantages of the Large Capacity Soup Packaging Machine
1. 1-25L Customizable Soup Packaging
The SYB-VII supports customizable pouch packaging from 1L to 25L, making it suitable for soup base, bone broth, hot pot oil, edible oil, sauces, and other large-capacity liquid food products.
2. Laminated Film Sealing and UV Sterilization
The machine supports laminated film packaging and reinforced sealing to improve pouch strength. Strong UV sterilization treats the packaging film before filling, helping improve hygiene during pouch forming and filling.
3. PLC Control and Flexible Adjustment
The PLC and HMI touchscreen system allows easy adjustment of filling volume, production speed, sealing parameters, and alarms. The adjustable sealing system supports quick changes between different pouch specifications.
4. CIP-Ready Design with Optional Class 100 Protection
The liquid-contact pipeline supports CIP automatic circulation cleaning to reduce manual cleaning work. Optional Class 100 clean laminar flow protection can be added for soup, dairy, beverage, and other hygiene-sensitive liquid products.
Applications
This Large Capacity Soup Packaging Machine is suitable for 1-25L pouch packaging of soup, broth, oil, sauce, condiment, beverage, and industrial liquid products.
- Bone broth, beef broth, soup base, and hot pot soup base
- Pork oil, hot pot oil, edible oil, soybean oil, and vegetable oil
- Soybean paste, sweet sauce, chili sauce, ketchup, and condiments
- Dairy products, milk drinks, beverages, juice, and drinking water
- Liquid egg, plant protein drinks, and active biological liquids
- Detergents, lubricants, coatings, wood varnish, and industrial liquids
For smaller pouch filling and packing solutions, you can view our 100-1000ml liquid packing equipment category.
Workflow
First, roll film enters the film feeding system and passes through UV sterilization. The machine forms the pouch, meters the soup or liquid product, fills the pouch, completes reinforced sealing, cuts the finished pouch, prints the date code, and discharges the final bag automatically.
Operators can adjust filling volume, pouch length, sealing parameters, production speed, and alarm settings through the HMI touchscreen. The system can also connect with upstream product supply systems and CIP cleaning equipment according to factory layout.
FAQ
What packaging volume does the SYB-VII Large Capacity Soup Packaging Machine support?
The machine supports customizable pouch packaging from 1L to 25L, depending on product type, film width, and pouch size.
What products can this machine pack?
It can pack bone broth, beef broth, soup base, hot pot oil, edible oil, sauces, condiments, dairy products, beverages, detergents, lubricants, coatings, and other liquid or semi-fluid products.
Can it handle soup with higher viscosity?
Yes. The filling system can be configured according to product viscosity and flow behavior, making it suitable for soup base, sauces, oils, and semi-fluid products.
Does the machine support automatic cleaning?
Yes. The machine supports CIP automatic circulation cleaning, helping reduce manual cleaning work and improve sanitation between production batches.
Can the pouch format be customized?
Yes. Pouch volume, film width, sealing style, cleanroom configuration, and machine functions can be customized according to product and factory requirements.
