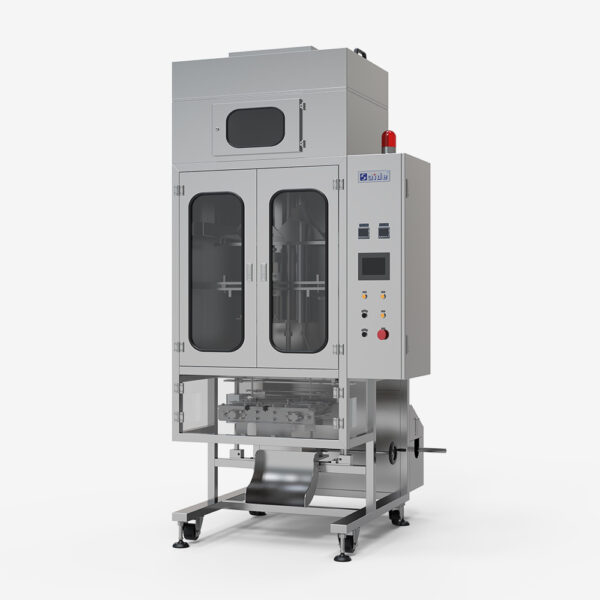

SYB/SJYB-VI Sauce Packaging Machine 0.1-25L

Sauce Packaging Machine SYB/SJYB-VI is a fully automatic pouch packing system designed for condiment, paste, and sauce products. It supports customizable packaging from 0.1L to 25L, making it suitable for soybean paste, yellow bean sauce, tomato sauce, salsa sauce, sesame sauce, peanut sauce, jam, sweet sauce, fragrant sauce, chili sauce, and salad dressing.

With a production speed of 5-20 bags/min, the machine completes film feeding, UV sterilization, pouch forming, sauce metering, filling, sealing, cutting, date coding, and finished pouch discharge in one automatic process. Its PLC/HMI control, servo and pneumatic hybrid drive, CIP-ready structure, laminated film sealing support, and optional Class 100 clean purification system make it suitable for flexible sauce pouch packaging production.

Sauce Packaging Machine Overview

The SYB/SJYB-VI Sauce Packaging Machine is designed for sauce manufacturers that need automatic pouch packaging for different viscosity levels, pouch sizes, and packaging materials. The machine can be customized by capacity, bag shape, sealing style, filling system, and cleanroom configuration.

For thicker sauces and paste products, the filling system can be selected according to product flow characteristics. The adjustable sealing system supports quick specification changes, while laminated film compatibility helps improve pouch strength and product protection.

Technical Parameters

Technical Parameter	Specification
Model	SYB/SJYB-VI
Production Capacity	5-20 bags/min
Packaging Volume	5-1L, customizable; supports 0.1-25L configurations
Film Width	350-620mm
Metering Accuracy	+/-0.5%
Working Pressure	0.65 MPa
Air Consumption	0.6 m³/min at 0.8 MPa
Power Supply	AC 220V +/-10%, 50Hz
Maximum Power	3 kW / 2.5 kW
Overall Dimensions	1560 x 1550 x 2700 mm / 3100 mm
Equipment Weight	670 kg / 710 kg

4 Core Advantages of the Sauce Packaging Machine

1. Customizable 0.1-25L Sauce Packaging

The machine can be customized for sauce pouch packaging from 0.1L to 25L, supporting different bag shapes, filling capacities, sealing styles, and production requirements.

2. Suitable for Sauce and Paste Products

The SYB/SJYB-VI can be configured for soybean paste, tomato sauce, chili sauce, sesame sauce, peanut sauce, jam, salad dressing, and other medium-to-high viscosity products. The filling system can be selected according to product viscosity and flow behavior.

3. PLC Control and Adjustable Sealing

The machine uses PLC control and an HMI touchscreen for filling volume adjustment, packaging speed setting, production monitoring, alarm display, and recipe management. The adjustable sealing system supports quick changes between different pouch specifications.

4. UV Sterilization, CIP Cleaning, and Optional Class 100 Protection

Strong UV sterilization treats the packaging film before filling, while the CIP-ready liquid circuit supports automatic circulation cleaning. Optional Class 100 clean laminar flow protection can be added for sauce products requiring higher hygienic packaging conditions.

Applications

This Sauce Packaging Machine is suitable for automatic pouch packaging of condiment, paste, sauce, and semi-fluid products.

• Soybean paste, yellow bean sauce, and sweet sauce
• Tomato sauce, salsa sauce, ketchup, and fruit sauce
• Sesame sauce, peanut sauce, fragrant sauce, and chili sauce
• Salad dressing, seasoning sauce, and condiment products
• Jam, paste products, and other semi-fluid food products

For smaller pouch filling and packing solutions, you can view our 100-1000ml liquid packing equipment category.

Workflow

First, roll film enters the film feeding system and passes through UV sterilization. The machine forms the pouch, meters the sauce product, fills the pouch, completes sealing, cuts the finished pouch, prints the date code, and discharges the final bag automatically.

Operators can adjust filling volume, pouch size, film width, sealing settings, production speed, and alarm parameters through the HMI touchscreen. The system can also connect with CIP cleaning equipment and upstream sauce processing lines according to factory layout.

FAQ

What products can this Sauce Packaging Machine pack?

It can pack soybean paste, yellow bean sauce, tomato sauce, salsa sauce, sesame sauce, peanut sauce, jam, sweet sauce, chili sauce, salad dressing, and similar condiment products.

What packaging volume does the machine support?

The machine can be customized for 0.1L to 25L pouch packaging, depending on product type, bag size, film width, and production requirements.

Can it handle thick paste products?

Yes. The filling system can be configured according to product viscosity and flow behavior, making it suitable for thick sauces, pastes, dressings, and semi-fluid products.

Can the pouch format be customized?

Yes. Bag shape, material, capacity, sealing style, and machine function can be customized according to product and factory requirements.

Does the machine support automatic cleaning?

Yes. The machine supports CIP automatic circulation cleaning, helping reduce manual cleaning work and improve sanitation between sauce production batches.

To discuss sauce viscosity, pouch size, filling volume, cleanroom configuration, or custom packaging requirements, please contact Saide Pack. You can also read more packaging machine guides in our packaging machinery blog.
