SJYB-Ⅶ 3-12L Fruit Juice Packaging Machine
Product Summary
The Fruit Juice Packaging Machine is a fully automatic coconut milk and fruit beverage pouch packing solution designed for customizable packaging from 0.1L to 25L. It is suitable for coconut milk, soy milk, fruit puree, fruit juice, non-carbonated beverages, plant protein drinks, and similar liquid food products requiring clean packaging and flexible pouch formats.
Built with a modular stainless steel structure, adjustable sealing system, PLC control, HMI touchscreen operation, servo and pneumatic hybrid transmission, and CIP automatic circulation cleaning compatibility, this machine supports production speeds of 5-20 bags/min with metering accuracy of +/-0.5%. With film width support from 350-970mm, UV film sterilization, optional Class 100 clean laminar flow protection, and customizable capacity from 25L to 1L, it provides a flexible solution for fruit juice, coconut milk, and plant-based beverage packaging lines.

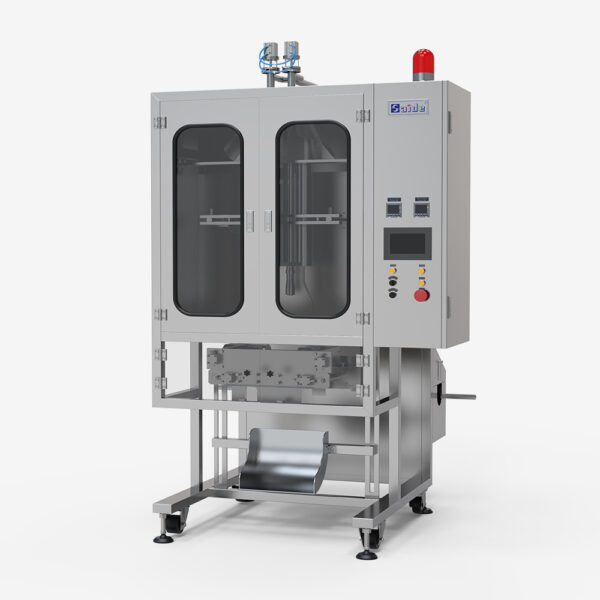

Fruit Juice Packaging Machine 0.1-25L 20 Bags/Min
Table of Contents
Fruit Juice Packaging Machine is a fully automatic pouch packing system designed for coconut milk, soy milk, fruit puree, fruit juice, non-carbonated beverages, plant protein drinks, and other liquid food products. It supports customizable packaging from 0.1L to 25L, with flexible capacity, pouch size, and function options based on customer production requirements.
With a production speed of 5-20 bags/min, the machine completes film feeding, UV sterilization, pouch forming, liquid metering, filling, sealing, cutting, date coding, and finished pouch discharge in one automatic process. Its PLC/HMI control, servo and pneumatic hybrid drive, CIP-ready structure, laminated film sealing support, and optional Class 100 clean purification system make it suitable for clean and flexible fruit beverage pouch packaging.
Fruit Juice Packaging Machine Overview
The Fruit Juice Packaging Machine is designed for beverage manufacturers that need automatic pouch packaging for different liquid formats. It can be customized for packaging volume, film width, bag shape, sealing style, and hygiene configuration according to the product and factory layout.
The machine is suitable for both small beverage pouches and larger pouch formats. Its adjustable sealing system allows quick specification changes, while laminated film compatibility helps improve pouch strength and product protection.
Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Production Capacity | 5-20 bags/min |
| Packaging Volume | 25L-1L, customizable; supports 0.1-25L configurations |
| Film Width | 350-970mm |
| Metering Accuracy | +/-0.5% |
| Working Pressure | 0.65 MPa |
| Air Consumption | 0.6 m³/min at 0.8 MPa |
| Power Supply | AC 220V +/-10%, 50Hz |
| Maximum Power | 3 kW |
| Overall Dimensions | 1560 x 1550 x 3000 mm |
| Equipment Weight | 710 kg |
4 Core Advantages of the Fruit Juice Packaging Machine
1. Customizable 0.1-25L Packaging Range
The machine can be customized for packaging volumes from 0.1L to 25L, helping manufacturers produce small retail pouches, medium beverage pouches, or larger liquid food packages with one flexible equipment platform.
2. PLC Control and HMI Touchscreen Operation
The machine uses PLC control and an HMI touchscreen for filling volume adjustment, packaging speed setting, production monitoring, alarm display, and recipe management. Operators can quickly adjust settings for different beverage products and pouch sizes.
3. Laminated Film Sealing and UV Sterilization
The machine supports laminated film packaging and uses reinforced sealing to improve pouch strength. Strong UV sterilization treats the packaging film before filling, helping improve hygiene during pouch forming and filling.
4. CIP-Ready Design with Optional Class 100 Protection
The liquid-contact pipeline supports CIP automatic circulation cleaning to reduce manual cleaning work. Optional Class 100 clean laminar flow protection can be added for coconut milk, fruit juice, soy milk, and hygiene-sensitive beverage products.
Applications
This Fruit Juice Packaging Machine is suitable for automatic pouch packaging of liquid beverage and plant-based drink products.
- Coconut milk and coconut beverage products
- Soy milk and plant protein drinks
- Fruit puree, fruit juice, and fruit beverage products
- Non-carbonated beverages and liquid food products
- Barrel or pouch beverage formats requiring custom capacity
For smaller pouch filling and packing solutions, you can view our 100-1000ml liquid packing equipment category.
Workflow
First, roll film enters the film feeding system and passes through UV sterilization. The machine forms the pouch, meters the beverage product, fills the pouch, completes sealing, cuts the finished pouch, prints the date code, and discharges the final bag automatically.
Operators can adjust filling volume, pouch size, film width, sealing settings, production speed, and alarm parameters through the HMI touchscreen. The system can also connect with CIP cleaning equipment and upstream beverage processing lines according to factory layout.
FAQ
What packaging volume does this Fruit Juice Packaging Machine support?
The machine can be customized for 0.1L to 25L pouch packaging, depending on product type, bag size, film width, and production requirements.
What is the maximum production speed?
The machine can reach up to 20 bags/min, depending on filling volume, beverage viscosity, pouch size, and film material.
What beverage products can this machine pack?
It can pack coconut milk, soy milk, fruit puree, fruit juice, non-carbonated beverages, plant protein drinks, and similar liquid food products.
Can the machine be customized?
Yes. Packaging volume, bag shape, film width, sealing style, filling system, and cleanroom configuration can be customized according to product and factory requirements.
Does the machine support automatic cleaning?
Yes. The machine supports CIP automatic circulation cleaning, helping reduce manual cleaning work and improve sanitation between beverage production batches.
To discuss pouch size, filling volume, fruit beverage production, cleanroom configuration, or custom packaging requirements, please contact Saide Pack. You can also read more packaging machine guides in our packaging machinery blog.
